What is a Through Hole Slip Ring?

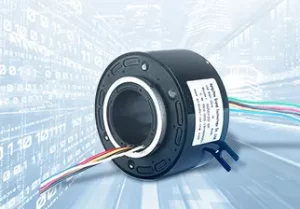

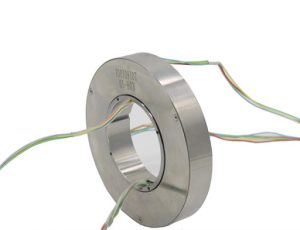

A through hole slip ring, also known as a hollow shaft slip ring, is an advanced electrical connector that enables the transmission of electrical power, signals, and data between stationary and rotating parts of a machine. The most defining feature of this type of slip ring is its central bore, which allows cables, pipes, or shafts to pass through the center. This unique design is critical for applications needing to centralize and route these components through a rotating structure.
Through-hole slip rings are ideal for systems that require the transmission of power and signals while maintaining rotational motion. Their applications are widespread in industries ranging from robotics to wind energy.
Core Functionality
The core functionality of a through hole slip ring revolves around its ability to provide uninterrupted transmission of electrical power, signals, or data between rotating and stationary components in a system. The central bore, or hollow shaft, sets through hole slip rings apart from other types by allowing the passage of cables, pipes, shafts, or other components through the rotating unit, facilitating centralized routing.
Electrical and Data Transmission
Through-hole slip rings are essential in providing continuous electrical power and signal transmission across rotating systems. They are used in applications where the stationary part of the system needs to maintain a connection to the rotating part. Here are key aspects of their electrical and data transmission functionality:
Continuous Power Supply: Through-hole slip rings ensure that electrical circuits remain operational during the rotation of components. This is particularly crucial in systems such as wind turbines, cranes, and radar systems, where uninterrupted power is necessary for continuous operation.
High-Performance Data Transmission: Through-hole slip rings are capable of transmitting high-speed signals, including Ethernet, HDMI/SDI, RF signals, and fiber optics, ensuring reliable data transfer. The ability to handle various types of data signals makes them suitable for applications in medical imaging, telecommunications, and robotics, where precision and clarity are crucial.
Signal Integrity: The design of the slip ring minimizes the electrical noise and interference during signal transmission, ensuring that signals remain clear and stable even at high speeds or in high-power applications.
Hollow Shaft Design
The most distinctive feature of a through-hole slip ring is its hollow shaft design, which provides the following advantages:
Centralized Routing of Components: The central bore allows for the integration of various systems, such as hydraulic lines, pneumatic lines, fiber optic cables, and large shafts, through the rotating part. This centralized routing helps reduce the complexity of the system and prevents the need for multiple rotating connectors.
Space Efficiency: By allowing cables and other components to pass through the center of the slip ring, the hollow shaft design reduces the space requirements for rotating parts. This is particularly useful in large-scale industrial systems or compact setups like radar systems, robotics, and medical scanners, where space efficiency is critical.
Versatility for Complex Applications: The through-hole design enables slip rings to accommodate multiple systems (electrical, pneumatic, hydraulic, and more) in a single unit, making it ideal for applications like wind turbines, heavy machinery, and military systems where diverse functionality is required.
Mechanical Performance
Through-hole slip rings are designed for smooth, low-torque rotation while maintaining reliable electrical and data transmission. This makes them suitable for continuous, heavy-duty applications where systems require reliable performance over extended periods.
Low Friction and Wear: The materials used in the construction of the slip ring ensure that there is minimal friction during rotation, reducing wear and tear and extending the lifespan of the slip ring. This is crucial in applications with high-speed rotation or continuous operation, like wind turbines or robotic arms.
Durability: These slip rings are engineered for long-term use, with features like precision bearings and high-quality materials that ensure smooth rotation and consistent power and signal transmission.
Customization
One of the key features of through-hole slip rings is their customization. The bore size, number of circuits, signal types, and even the materials used in construction can be tailored to fit the specific needs of an application.
- Hybrid Systems: Custom slip rings can integrate multiple systems—such as combining electrical and fiber optic circuits or pneumatic lines—into a single unit. This eliminates the need for multiple connectors and allows for streamlined operations in complex systems like robotic arms, heavy machinery, and medical imaging equipment.
Comparison with Other Slip Ring Types
Slip rings come in various designs, each suited for specific applications. However, the through hole slip ring stands out due to its versatility and ability to integrate multiple systems in a single unit. Here, we’ll compare the through hole slip ring with other common slip ring types: pancake slip rings, capsule slip rings, and rotary slip rings.
Pancake Slip Rings
Pancake slip rings are a flat, disc-shaped type of slip ring commonly used in applications where axial space is constrained. These slip rings are designed to function well in low-profile setups, but they do not feature the central bore that defines through hole slip rings.
Design and Space Efficiency: Pancake slip rings excel in applications with limited axial space, such as in small robotic systems or low-profile equipment. Their compact, disc-like design makes them ideal for tight setups where height or depth is limited. However, unlike through hole slip rings, pancake slip rings do not provide a hollow shaft for routing other components like hydraulic lines or pneumatic lines.
Signal and Power Transmission: While pancake slip rings can handle basic power transmission and low-speed signal transmission, they typically do not offer the high-level performance needed for more complex data signals like Ethernet, HDMI, or fiber optics. For systems that require high-bandwidth data transmission, through hole slip rings are a more suitable choice.
Limited Versatility: Pancake slip rings are ideal for simpler, low-complexity systems, but they are less versatile when it comes to integrating different types of systems into one unit. Through hole slip rings, by contrast, offer greater flexibility in handling a variety of signal types and multi-system integration.
Capsule Slip Rings
Capsule slip rings are compact, lightweight slip rings designed for small-scale applications. These are generally used in systems that do not require the high capacity or complexity of through hole slip rings.
Compact Size: Capsule slip rings are ideal for space-constrained applications where only a few circuits or simple power transmission are needed. For example, they are commonly used in small-scale industrial systems, cameras, and test equipment. However, the lack of a central bore limits their ability to accommodate larger cables or multiple integrated systems.
Limited Customization: Unlike through hole slip rings, capsule slip rings offer fewer customization options in terms of bore size, signal types, and material choices. They are designed for simpler, low-power applications and may not meet the requirements of larger, more complex systems.
Shorter Lifespan: Capsule slip rings are generally built for low-duty cycles and may have a shorter lifespan compared to through hole slip rings. Their smaller size and simpler design mean that they are less suited for high-demand applications where durability and long-term performance are required.
Rotary Slip Rings
The term rotary slip ring is a broad category that encompasses various types of slip rings, including through hole, pancake, and capsule slip rings. Rotary slip rings are used to transmit power and signals from a stationary part to a rotating part in a system. They are versatile in their design and can handle a variety of applications.
Broad Category: While through hole slip rings are a specific type of rotary slip ring, the term “rotary slip ring” covers many variations that may not feature the same design flexibility. Rotary slip rings are typically used for general applications, but the through hole version offers the unique advantage of the central bore, which enables multi-system integration.
Versatility and Customization: Through hole slip rings are far more versatile than other rotary slip rings, especially in terms of the ability to integrate multiple systems (e.g., electrical, fiber optics, pneumatic, hydraulic) into one unit. Standard rotary slip rings might not offer the same level of flexibility in these areas.
High-Performance Needs: While standard rotary slip rings can handle basic transmission tasks, through hole slip rings are specifically engineered for high-performance applications where signal integrity, power handling, and integration with multiple systems are crucial.
Summary of Key Differences
Through Hole Slip Rings: Offer high customization options, including large bore sizes, multi-system integration, and the ability to handle high-speed data signals, power transmission, and multiple circuit types through a single rotating unit. They excel in complex applications that require a centralized routing for multiple components (e.g., robotic arms, wind turbines, radar systems).
Pancake Slip Rings: Best suited for applications with limited axial space, such as low-profile equipment. They are space-efficient but lack the versatility of through hole slip rings when it comes to handling complex systems or integrating multiple components.
Capsule Slip Rings: Ideal for small-scale applications with low signal and power demands. They are compact but lack the bore and system integration capabilities of through hole slip rings.
Rotary Slip Rings: A general term that encompasses different slip ring types, including through hole. Through hole slip rings offer greater versatility and higher performance for more demanding applications compared to other rotary slip ring types.
Grand Slip Rings’ Expertise
At Grand Slip Rings, we specialize in the design and manufacture of custom through-hole slip rings with bore sizes up to 700mm. Our extensive expertise allows us to deliver tailored solutions for even the most demanding industrial applications, ensuring that our slip rings maintain optimal performance and reliability in the most challenging environments. We pride ourselves on providing solutions that are both innovative and adaptable to our client’s specific needs.
Why Choose a 700mm Through Hole Custom Slip Ring?
The 700mm through hole custom slip ring is a highly specialized component designed for large-scale industrial applications where significant space, power, and signal transmission requirements are involved. This slip ring is designed to accommodate the needs of complex machines and systems that require continuous rotation while routing various types of components through the center, such as cables, pipes, or shafts.
Applications
Wind Turbines: Wind turbines utilize through-hole slip rings for yaw and pitch control systems, allowing the transfer of both power and signals across the rotating components. This ensures that the turbine can adjust its orientation and blade angles without interrupting the electrical or data connections, even in challenging environmental conditions.
Cranes and Heavy Machinery: Through-hole slip rings in cranes and other large machineries enable the seamless integration of electrical circuits alongside hydraulic or pneumatic lines. This ensures smooth operation across all mechanical and electrical systems, which is especially important in applications like lifting and rotating heavy loads.
Radar Systems: Radar systems, especially those used in rotating antenna systems, rely on through-hole slip rings for uninterrupted signal transmission. The slip ring’s design allows it to maintain high levels of signal integrity while facilitating 360° rotation.
Medical Imaging: In medical imaging systems like CT and MRI scanners, through-hole slip rings are used to facilitate 360° rotation, allowing the scanner to capture images from all angles without interruption. This rotational capability enhances the quality of diagnostic imaging and enables more efficient scanning procedures.
Robotics: For heavy-duty robotic arms, through-hole slip rings provide a reliable means of centralized cable management. This helps avoid tangling or damaging cables while ensuring that electrical and data connections are maintained during the arm’s movements.
Military and Defense: In defense applications, such as radar or communication systems, the slip rings meet stringent durability requirements. Their ability to work in harsh conditions, including high temperatures and electromagnetic interference, ensures that they can provide uninterrupted service in critical military operations.
Key Advantages
Large Bore Capacity: The 700mm bore size allows for the passage of large cables, pipes, or shafts, making it ideal for complex setups that require multiple integrated systems. This large bore capacity ensures that even the most intricate industrial applications can be serviced by a single, centralized slip ring.
Customization: At Grand Slip Rings, we offer tailored slip ring solutions to fit specific needs, including:
- Custom circuits for specialized signals such as Ethernet, HDMI/SDI, RF, etc.
- Hybrid designs that combine electrical, fiber optic, and pneumatic systems into a single rotating unit.
- Use of specialized materials for applications requiring high temperature, waterproof, or high-speed tolerance.
Durability: Our slip rings are engineered to provide smooth rotation, minimize torque, and offer a long operational life. Built to withstand the most demanding environments, our slip rings are durable, providing reliability for industrial machinery operating in extreme conditions.
High-Power Compatibility: These slip rings can handle voltages up to 380VAC and high-current applications, making them suitable for use in heavy-duty machinery, ensuring that power is transmitted without degradation or loss.
Technical Specifications of Grand Slip Rings’ 700mm Custom Solutions
Core Features
Bore Diameter: The standard bore diameter is 700mm, though we can offer expanded sizes upon special request to suit particular needs. This customization ensures that our clients’ complex applications are fully supported.
Voltage/Current Ratings: These slip rings are capable of supporting high-voltage (up to 380VAC) and high-current applications, which is essential for machinery that requires large amounts of electrical power.
Signal Types: Our slip rings can transmit a variety of signals, including Ethernet, HDMI/SDI, and RF, and can integrate with field buses for industrial applications. This versatility makes them suitable for a wide range of industries.
Environmental Resistance: With features like IP68 waterproofing, high-temperature tolerance, and dust and corrosion resistance, our slip rings are built to last, even in the harshest environments. These features ensure that the slip rings continue to perform reliably under extreme conditions, including exposure to dirt, moisture, and high temperatures.
Hybrid Designs: Combining electrical, fiber optic, and pneumatic systems in a single slip ring is a hallmark of our custom solutions. This hybrid approach ensures that clients can rely on a single rotating unit to meet multiple system needs, reducing complexity and improving reliability.
Comparison with Standard Through Hole Slip Rings
While standard through-hole slip rings are designed with smaller bores and fewer customization options, our 700mm custom slip rings provide unparalleled flexibility. They can support larger cables, pipes, and shafts, and their advanced features, such as hybrid designs and high environmental resistance, make them ideal for demanding industrial applications.
While standard through-hole slip rings are widely used in a variety of industrial applications, Grand Slip Rings’ custom 700mm through hole slip rings offer enhanced capabilities that make them particularly suited for complex and large-scale systems. Below, we’ll delve into a more detailed comparison, highlighting the key differences in features, customization, and performance.
Bore Size
Standard Through Hole Slip Rings: The bore diameter of standard through hole slip rings typically ranges from a few millimeters to several tens of millimeters. These are often sufficient for smaller-scale applications where only a limited number of cables, pipes, or shafts need to be routed through the center.
Grand Slip Rings’ 700mm Custom Slip Rings: The standout feature of our custom slip rings is their large bore diameter of up to 700mm (with potential for further expansion based on client specifications). This large central bore allows for the integration of not only electrical cables but also hydraulic lines, pneumatic lines, fiber optic cables, or even large shafts, all passing through the same slip ring. This makes our slip rings ideal for heavy-duty applications where multiple systems need to be accommodated simultaneously, such as in wind turbines, heavy machinery, or radar systems.
Customization Options
Standard Through Hole Slip Rings: Standard slip rings typically offer limited customization in terms of circuit design and signal types. While they can handle basic power transmission and simple signals, they are often not flexible enough to support complex systems that require high-speed data transmission, fiber optics, or hybrid systems that integrate electrical, pneumatic, and hydraulic lines in one unit.
Grand Slip Rings’ Custom Solutions: At Grand Slip Rings, we take customization to the next level. Not only can we offer large bores, but we also provide tailored solutions that integrate:
- Hybrid designs: Combining electrical circuits, fiber optic cables, and hydraulic or pneumatic lines within the same slip ring.
- Signal types: Our custom slip rings can accommodate specialized circuits like Ethernet, HDMI, SDI, RF signals, and field buses, making them suitable for applications where high-performance data transmission is essential.
- Material specifications: We can tailor the slip ring’s materials for specific environmental needs, such as high-temperature resistance, waterproofing (IP68 rating), and corrosion resistance for challenging environments like offshore oil rigs or military applications.
Electrical and Mechanical Performance
Standard Through Hole Slip Rings: While standard slip rings perform well in basic applications, their performance often falls short in high-demand scenarios. They may have limitations in high-speed rotation, heavy-duty power handling, or signal integrity, especially when used in high-precision environments. Moreover, standard slip rings tend to have higher torque and increased wear over time due to friction, which can affect their longevity and reliability.
Grand Slip Rings’ 700mm Custom Solutions: Grand Slip Rings are engineered for high performance in demanding industrial applications. Our slip rings are designed to provide:
- Low torque and smooth rotation, reducing wear and increasing the longevity of both the slip ring and connected components.
- High current and voltage handling: Capable of handling voltages up to 380VAC and high-current applications without compromising performance.
- Enhanced signal integrity: Our slip rings minimize electrical noise and signal degradation, ensuring uninterrupted and clear data transmission even at high speeds or over long periods of continuous rotation.
- Durability: Built to withstand harsh conditions, our slip rings meet industry standards for vibration resistance, temperature extremes, and electromagnetic interference.
Environmental Resistance
Standard Through Hole Slip Rings: Standard slip rings often come with basic protection, such as some level of dust resistance or water resistance, but their ability to withstand extreme temperatures, harsh chemicals, or corrosive environments is limited. They may be suited for light to moderate industrial environments but are often not durable enough for applications in more demanding sectors, such as offshore energy or defense.
Grand Slip Rings’ Custom Solutions: Our 700mm slip rings are specifically designed with environmental resistance in mind. They offer:
- IP68 waterproofing: This makes them suitable for use in submerged or highly humid environments.
High-temperature slip ring: Able to operate in temperatures ranging from -40°C to +200°C, ensuring consistent performance in extreme conditions.
- Corrosion resistance: Our slip rings are constructed with materials that can withstand exposure to harsh chemicals, saltwater, and other corrosive substances commonly found in industries like offshore oil and gas or military defense.
Complexity and Integration
Standard Through Hole Slip Rings: Standard slip rings are often used in simpler applications where there is no need for integrating multiple systems into one unit. For example, they are commonly used in camera systems, simple wind turbines, or automated equipment that require only electrical power transmission.
Grand Slip Rings’ 700mm Custom Solutions: Our custom slip rings are designed for complex integration. This means they can handle a wide variety of systems operating simultaneously. Some of the advanced capabilities of our custom slip rings include:
- The ability to integrate electrical power, data signals, and fluid lines (hydraulic or pneumatic) through the same central bore, makes them ideal for industries like automated robotics, heavy machinery, and renewable energy.
- The modular design can be tailored to accommodate specific requirements for signal types, number of channels, and power needs, all in one compact rotating unit.
Lifespan and Maintenance
Standard Through Hole Slip Rings: Due to their simpler designs, standard slip rings may require more frequent maintenance, especially if they are subjected to heavy-duty or high-speed applications. The wear and tear from frequent use, combined with limited materials designed for extreme environments, can lead to a shorter lifespan.
Grand Slip Rings’ 700mm Custom Solutions: Our custom solutions are engineered for longevity. With low-friction materials and advanced sealing systems, our slip rings are built for continuous, heavy-duty use. Our slip rings require minimal maintenance even in challenging environments, and their long lifespan helps reduce downtime, making them a more cost-effective choice in the long run.
Cost Considerations
Standard Through Hole Slip Rings: Standard slip rings are typically more cost-effective upfront due to their simpler design and limited customization. However, in more complex or demanding applications, their limited capabilities may require frequent replacements or additional components to meet the system’s needs, which can increase costs over time.
Grand Slip Rings’ Custom Solutions: While custom solutions come with a higher initial cost, they provide significant value in the long term by offering superior performance, reliability, and customizability. The ability to integrate multiple systems, handle heavy-duty applications, and provide long-term durability helps reduce overall maintenance and replacement costs.
Grand Slip Rings’ custom 700mm through hole slip rings outperform standard slip rings in virtually every aspect, including bore size, customization flexibility, electrical and mechanical performance, environmental resistance, and lifespan. While standard slip rings may be sufficient for simpler, less demanding applications, our custom solutions provide the flexibility, power handling capabilities, and durability needed for large-scale, high-performance systems across industries such as wind energy, military defense, robotics, and medical imaging.
Choosing a 700mm custom slip ring from Grand Slip Rings ensures that your systems will operate efficiently and reliably, even under the most challenging conditions.
Unique Selling Points of Grand Slip Rings
Custom Engineering
One of the standout features of Grand Slip Rings is our ability to provide highly customized solutions for a wide range of industrial applications. Our custom engineering capabilities allow us to design slip rings that integrate a variety of systems—electrical, pneumatic, hydraulic, and fiber optic—into a single rotating unit. This flexibility enables our clients to streamline complex systems, reducing the need for multiple connectors and simplifying the design process.
Hybrid Systems: By combining different technologies in one slip ring, such as electrical circuits with pneumatic or hydraulic lines, we can create solutions that perfectly fit the specific requirements of heavy-duty applications like robotics, military defense, or wind energy. This hybrid capability ensures that our slip rings perform multiple functions without the need for additional mechanical or electrical components, improving both space utilization and system efficiency.
Material Selection: We understand that different applications require different materials. Whether it’s high-temperature resistance, waterproofing, or corrosion resistance, our team works with clients to select materials that best meet the unique demands of each environment. For instance, in environments with extreme temperatures or exposure to harsh chemicals, we can incorporate specialized materials that maintain the slip ring’s durability and performance under such conditions.
Tailored Circuitry: Beyond physical size, we also provide customization in terms of the signal types transmitted through the slip ring. Whether it’s high-frequency signals like RF, high-speed data transmission like Ethernet or HDMI, or more specialized circuits like fiber optics, we tailor the circuit layout and design to ensure optimal signal integrity and performance. This customization is particularly beneficial in industries like telecommunications, medical imaging, and military systems, where high-performance data transmission is crucial.
Quality Assurance
At Grand Slip Rings, quality is paramount. Our slip rings undergo rigorous testing at every stage of production to ensure they meet the highest standards of performance and durability. We use precision manufacturing techniques, advanced quality control systems, and stringent testing protocols to guarantee that every slip ring that leaves our facility performs flawlessly.
Smooth Rotation: One of the critical requirements for slip rings is smooth, frictionless rotation. We employ advanced design methods and precise engineering to ensure that the slip rings rotate smoothly with minimal torque, even under heavy loads or continuous use. This reduces wear and tear and extends the operational life of the slip ring.
Minimal Electrical Noise: Slip rings, especially those used in data transmission, must operate with minimal electrical noise. Our manufacturing process focuses on minimizing interference, ensuring that the signals transmitted through the slip rings are clear and accurate. This is particularly important in industries where high-precision data is required, such as in radar systems or medical devices.
Long-Term Reliability: We guarantee that our slip rings will deliver long-term reliability, even under extreme operational conditions. Whether used in heavy-duty industrial machinery, military applications, or offshore energy systems, our slip rings are designed to last for years, providing consistent performance without the need for frequent maintenance or replacements.
Global Expertise
With Grand Slip Rings, you are not just buying a product; you are partnering with a company that brings global expertise and decades of experience to every project. Our team of engineers is proficient in designing and manufacturing slip rings for various industries, and we have a proven track record of delivering high-quality solutions for some of the most demanding applications worldwide.
Global Presence: We have worked with clients across the globe, providing solutions for industries ranging from renewable energy to defense and robotics. Our worldwide presence allows us to understand the diverse needs of industries across different regions and tailor our products to suit their unique challenges and environments.
Experience Across Industries: Over the years, we have honed our expertise in a variety of sectors. Whether it’s helping wind turbine manufacturers enhance performance, supporting the defense industry with rugged and reliable slip rings for radar systems, or supplying medical imaging companies with slip rings for rotating CT scanners, we have the knowledge and capabilities to support your industry needs.
Customer-Centric Approach: Our global expertise is not only reflected in our products but also in the service we provide. From the first consultation to post-installation support, our team works closely with clients to ensure their specific requirements are met and that the slip rings perform optimally in their respective applications.
Industry Use Cases
Wind Energy
In the wind energy sector, reliable power and signal transmission are crucial for the efficient operation of wind turbines. The 700mm through hole slip ring is used in the yaw and pitch control systems of wind turbines, where it facilitates the transmission of power to rotate the nacelle and adjust the angle of the turbine blades. Here’s why Grand Slip Rings are trusted in this industry:
Harsh Environmental Conditions: Wind turbines often operate in extreme weather conditions—whether offshore in saltwater environments or on land in areas with high winds and temperatures. Our slip rings are designed to withstand such conditions with IP68 waterproofing and corrosion-resistant materials, ensuring reliable operation even in the most hostile environments.
Centralized Routing: The large bore size (700mm) allows for efficient centralized routing of power, hydraulic lines, and other control systems through the turbine’s rotating components. This reduces the number of parts needed and minimizes maintenance, enhancing the turbine’s overall reliability and lifespan.
Hybrid Systems: The integration of both electrical and hydraulic/pneumatic systems into a single slip ring is particularly valuable in wind turbines, where both systems are used in tandem for controlling the turbine’s movement. Grand Slip Rings’ ability to provide hybrid designs makes them the ideal choice for this application.
Medical Imaging
In medical imaging devices, especially CT scanners and MRI machines, the ability to achieve 360° rotation is essential for high-quality imaging. Grand Slip Rings ensure that power and signal transmission remains uninterrupted throughout the scanning process, enabling seamless rotation for continuous data transmission and optimal image quality.
Critical Signal Transmission: The slip rings maintain the integrity of high-frequency signals necessary for clear imaging. Medical imaging requires continuous, uninterrupted power and signal flow for optimal function, and Grand Slip Rings provide the reliability needed for these critical applications.
Non-Invasive Design: For sensitive environments like hospitals and imaging centers, our slip rings are designed to be compact and efficient, reducing the risk of interference while also ensuring that the machines operate quietly and smoothly.
Robotics
In robotics, precision and reliability are paramount, and through hole slip rings play a crucial role in ensuring continuous power and signal transmission to robotic arms. The 700mm slip ring supports heavy-duty systems, ensuring that these robots can move freely while maintaining essential electrical connections for control and data processing.
Centralized Cable Management: The large bore diameter of our slip rings allows for efficient management of cables, reducing clutter and preventing tangling, which can impede the operation of robotic systems. This results in smoother, more efficient movement, particularly in industrial automation.
Heavy-Duty Applications: Robotic arms often deal with heavy loads and demanding environments. The durability and low-torque performance of our slip rings ensure that they can withstand the high demands of these systems, enabling long-term reliable operation.
Military and Defense
Military and defense applications often require military slip rings to meet extreme environmental and operational requirements. Whether used in radar systems, communication systems, or surveillance equipment, Grand Slip Rings ensure the uninterrupted transfer of data and power, even in the most challenging conditions.
Durability and Ruggedness: Military applications demand components that can endure high vibrations, extreme temperatures, and electromagnetic interference. Our slip rings are designed to meet these rigorous standards, ensuring reliable performance in critical applications like radar and military communications.
Security and Signal Integrity: In defense applications, maintaining the integrity of transmitted data is crucial. Grand Slip Rings are engineered to minimize electrical noise and prevent signal degradation, making them ideal for high-security military communication systems.
Customization Process at Grand Slip Rings
At Grand Slip Rings, the customization process is designed to ensure that we deliver a slip ring solution that meets the unique requirements of your application. We take pride in providing personalized service and engineering expertise to every project. Here’s a more detailed look at how the customization process works:
Step-by-Step Guide
Requirements Analysis: The process begins with an in-depth consultation where we work closely with clients to fully understand their requirements. This includes:
- Identifying the bore size needed for routing cables, pipes, or shafts.
- Understanding the signal types that need to be transmitted (e.g., Ethernet, HDMI, RF, etc.).
- Analyzing the environmental conditions, such as temperature ranges, exposure to moisture or dust, and any potential hazards.
- Discussing the mechanical requirements of the system, such as rotation speed, torque, and load-bearing capacity.
Design Proposal: Once we have a clear understanding of the requirements, our engineering team creates a detailed design proposal. This includes:
- 3D models to visualize the slip ring’s physical structure and components.
- A technical specification document that outlines the electrical, mechanical, and environmental properties of the slip ring.
Prototyping and Testing: After the design proposal is approved, we move to the prototyping phase. We build a prototype and subject it to rigorous testing:
- Functional testing to ensure the slip ring performs as expected.
- Environmental testing to verify its performance under conditions such as high temperature, humidity, and exposure to chemicals or dust.
- Mechanical testing to ensure the slip ring rotates smoothly under operational loads.
Bulk Production and Quality Certification: Once the prototype passes testing, we proceed to bulk production. Each slip ring undergoes the same rigorous testing to ensure consistent quality. We also provide quality certification for every unit, assuring clients of the slip ring’s reliability and performance.
Our custom slip rings offer unparalleled flexibility and customization options. Whether you need high-speed slip rings, USB slip rings, or high-temperature slip rings, we have the expertise to deliver a tailored solution that meets your needs. Our ability to combine different technologies in a single slip ring ensures that we can meet the most demanding application requirements across various industries.
FAQs About 700mm Through Hole Slip Rings
Q：Can this handle both power and data?
A：Yes, our 700mm through-hole slip rings are designed to handle both power transmission and data transmission simultaneously, making them highly versatile for complex industrial systems. We offer hybrid designs that can integrate electrical circuits, fiber optic cables, and pneumatic or hydraulic lines into a single rotating unit. This makes them ideal for systems requiring the transmission of high-speed data (such as Ethernet, HDMI/SDI, RF signals) alongside high-current power. Applications like wind turbines, robotic arms, and medical imaging systems can benefit from this capability, as it ensures a reliable, uninterrupted flow of power and data through the rotating system. With the ability to handle both types of signals within the same slip ring, we eliminate the need for multiple separate components, simplifying system design and improving overall efficiency.
Q：How does it compare to a pancake slip ring?
A：While pancake slip rings are excellent for applications with limited axial space, they have a flat disc-like design that restricts their capacity for routing multiple components through the rotating part. In contrast, our 700mm through hole slip rings features an axial design with a large central bore, offering the ability to route not only electrical cables but also hydraulic lines, pneumatic tubes, and fiber optics through the same center. This provides significantly greater flexibility for complex systems that require centralized cable management. While pancake slip rings are suitable for simpler, low-profile systems, our through-hole slip rings are ideal for high-performance applications where multiple systems need to be integrated and large cables or pipes need to pass through. The larger bore size of the 700mm slip ring is perfect for heavy-duty machinery like wind turbines, cranes, and radar systems, where versatility and scalability are essential.
Q：What maintenance is required?
A：Our 700mm through hole slip rings are designed for minimal maintenance, ensuring long-term reliability and reducing operational downtime. They are equipped with self-cleaning brushes that automatically remove dust, debris, and contaminants from the electrical contacts during rotation, reducing wear and extending the life of the slip ring. Additionally, the low-friction design of the slip ring reduces mechanical stress, which also contributes to a longer operational lifespan. Routine checks are recommended, such as inspecting for any physical damage, wear on the brushes, or buildup of contaminants. However, due to the robust design and the self-maintaining features of our slip rings, the need for frequent manual maintenance is greatly minimized. This makes our slip rings especially valuable in remote or harsh environments, where regular maintenance is not feasible. If required, we offer full support and guidance on how to maintain optimal performance and troubleshoot any issues that may arise over time.
Q：Can you customize the slip ring for extreme environments?
A：Absolutely. We specialize in customizing slip rings to perform in extreme environments, ensuring that they meet the specific requirements of industries that operate in harsh conditions. Whether the application involves extreme temperatures, high humidity, corrosive chemicals, or submersion in water, we offer a range of specialized materials and coatings to ensure the slip ring’s durability and reliability. For high-temperature environments, we use heat-resistant materials that can operate at temperatures ranging from -40°C to +200°C. In waterproof applications, our slip rings come with IP68 waterproofing, making them ideal for use in submerged environments like offshore oil rigs or wind turbines located in areas with high humidity or direct water exposure. Additionally, for corrosive environments (such as in marine or chemical processing industries), we offer corrosion-resistant coatings and specialized materials that protect the slip ring from environmental damage. This level of customization ensures that your slip ring will continue to perform optimally, even in the most demanding conditions, helping to reduce downtime and maintenance costs over time.
