4 Passage Pneumatic/Hydraulic + Electrical Rotary Joint

◆ Can replace SMC series pneumatic rotary joint

◆ Can combine to transmit power and signals

◆ Standard ports M5, can be G1/8, G1/4, G3/8, G1/2, G3/4

◆ Specification can be customized

◆ Housing Material, Stainless Steel/Aluminum Alloy

◆ Working Temperature, -40℃-+80℃

◆ Working Humidity, 10-85% RH

◆ Protection Grade, IP51

Description

ModelPassagesCircuits(2A)TorqueNegative VacuumMax. PressureMax. Speed
MQR44 Passages, Port M5/0.3N.m-1.5kPa1Mpa300rpm
MQR4-S124 Passages, Port M512 Circuits0.3N.m-1.5kPa1Mpa300rpm
MQR4-S244 Passages, Port M524 Circuits0.3N.m-1.5kPa1Mpa300rpm

MQR4 Dimension Drawing   4 Passages   M5 Port

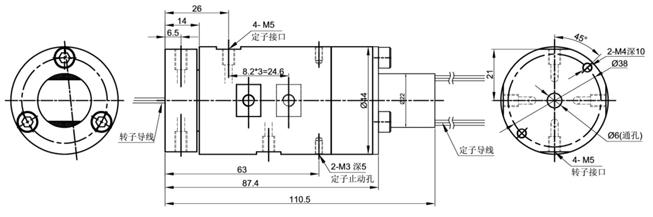

MQR4-12S Dimension Drawing   4 Passages   M5 Port +12 Circuits(2A)

Slip Rings Get a Quote

Try Grand Slip Rings Now!

🔒Submit Your Request for Slip Ring Technical Support.

Get a Quote

MQR4-24S Dimension Drawing   4 Passages   M5 Port +24 Circuits(2A)
