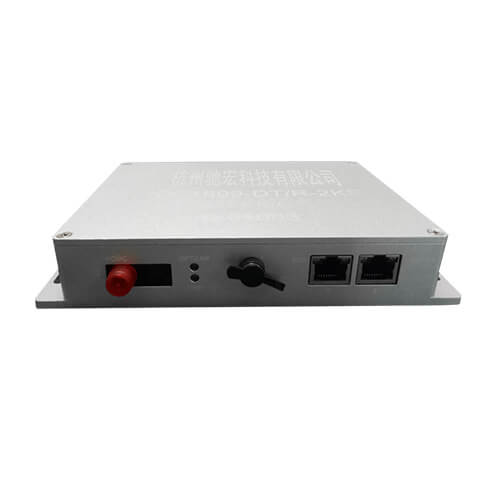

Optical Transmitter and Receiver XYOES-003

The Network optical transceiver is a 10/100/1000 Base-T.auto adaptive industrial optical terminal, can help user achieve the exchange of ethernet data , convergence and long distance transmission of optical . It use the low power design, no need fan to heat dissipation , it has the advantage of easy to use, simple maintenance. The design is comfort for the ethernet standard , have added the protection against lightning and static electricity , and have the wide working temperature range from -40℃~ +70℃,  performance stably and reliably . This device widely used in intelligent transportation, telecommunications, security, financial securities, customs, shipping, power, water conservancy and oil fields and other broadband data transmission fields.

Description

QuantityOptical transmitter one set, receiver one set
InterfaceOptical transmitter and receiver with a FC interface, a 220V power aviation plug interface and two RJ45 network interface
Speed10M/100M/1000M
Fiber typeSingle mode
Wavelength850/1300nm
Fiber optical connector typeFC/PC
Working Temperature-40℃~+70℃
Storage temperature-40℃~+70℃
Supply voltageAC220V
Size (L*W*H)200*120*30mm



◆ Support and compatible international IEEE802.3, IEEE802.3U standard, support TCP/IP protocol

◆ Adapt 10/100/1000BASE-T automatically

◆ 220V aviation plug offer power directly, easy to install, tight connect

◆ Has passed EMC national military standard, the optical transceiver can normal working in the electromagnetic environment, at the meanwhile do not interfere with other systems and equipment
