In this comprehensive guide, we aim to unravel the intricacies of windmill slip rings — a critical component in wind turbines that ensures optimal performance. From their functionality, selection, and maintenance, to addressing common user concerns and FAQs, we traverse every facet that demystifies these indispensable components.
Brief Overview of the Role of Slip Rings in Wind Turbines
Wind turbines tower above many landscapes, representing the modern march toward clean energy. At the heart of these complex machines are windmill slip rings, components that may seem small in the grand scope of these immense structures but whose importance cannot be overstated. These devices allow for the transmission of power, control signals, and data between the stationary and rotating parts of the turbine—essentially enabling the turbine’s blades to turn safely and reliably while its base remains fixed. Windmill slip rings facilitate a continuous 360° rotation, ensuring that the transmission is not interrupted, which is crucial for the generation of wind energy. Without these unassuming heroes, the turbine’s blades would not be able to adjust to changing wind directions, a process known as “yawing,” thereby limiting efficiency and energy capture.
Importance of Reliability and Efficiency in Wind Energy Generation
The shift towards renewable energy sources spotlights the critical role of wind farms in our energy matrix. To fulfill their promise, wind turbines must operate at the peak of efficiency and reliability. That’s where slip rings come into play. Any interruption in the transmission of power or data can hinder a wind turbine’s performance, or worse, cause downtime, leading to significant energy and financial losses. In the context of global energy demands and the relentless push for sustainable power sources, the reliability of windmill slip rings becomes a linchpin in the sizable machine of wind energy generation. Furthermore, efficiency isn’t just about ensuring performance; it’s also about reducing maintenance needs and operational costs. A well-designed slip ring minimizes resistance and wear, thereby maximizing the turbine’s output and lifespan—a crucial factor when the goal is to harness the gales of nature into a steady stream of eco-conscious power.

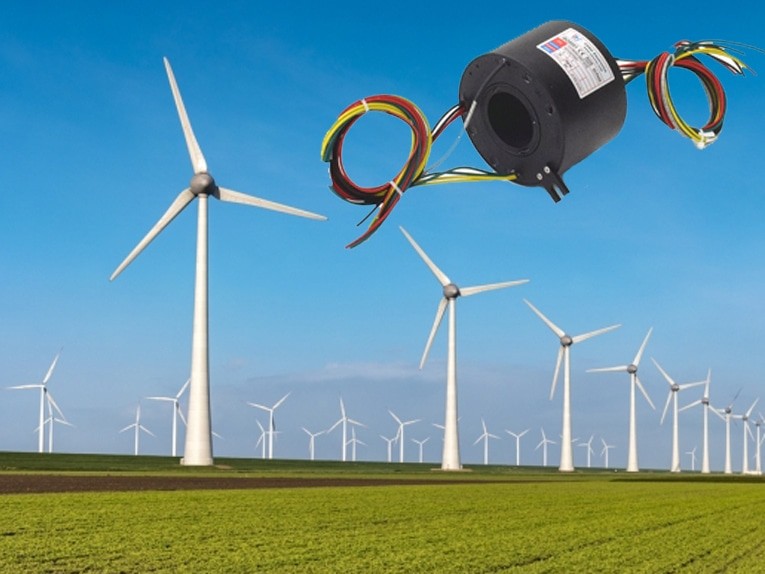

Definition and Purpose of Slip Rings in Wind Turbines
At their core, windmill slip rings embody the convergence of mechanical ingenuity and electrical engineering to solve a unique challenge: enabling the uninterrupted transfer of electrical currents and signals between stationary and rotating platforms within wind turbines. These components, often nestled within the nacelle—the housing atop the turbine’s tower—serve as pivotal conduits. They facilitate a wide range of critical functions, from the dynamic adjustment of blade angles to the smooth operation of power generation systems. Essentially, slip rings ensure that as the wind shifts and the turbine’s blades turn to catch it, the flow of electricity that powers motors, sensors, and control systems remains steadfast, preserving the turbine’s operational integrity and effectiveness.
The Basic Mechanics of How Slip Rings Work
To understand how slip rings work, picture a ring of conductive material, such as copper or gold, that sits stationary. Against this ring, a set of brushes composed of similar or compatible conductive materials presses lightly. As the turbine rotates, the ring maintains its position, but the connection, and thus electricity and data flow, continues unabated thanks to the brushes that glide over the ring’s surface. This design elegantly circumvents the limitations that would be imposed by wires or cables, which would quickly tangle or snap under the same conditions. The brushes and the ring together form a continuous path for power and signals, tailoring to the rotational freedom of the wind turbine.
Different Types of Slip Rings Used in Wind Turbines
The diversity in slip ring technology mirrors the breadth of their applications within wind turbines. For instance, fiber brush slip rings have become quite popular due to their durability and low maintenance features. These slip rings leverage bundles of conductive microfibers, offering superior conductivity and longevity compared to traditional metal brushes. They are particularly suited to environments where reliability over an extended period is critical.
On the other end of the spectrum, mercury-wetted slip rings offer an alternative approach. These slip rings use a pool of liquid mercury as the conductive medium, providing a near frictionless contact and thus minimal wear and tear, alongside reliable electrical conduction. However, due to environmental and health concerns associated with mercury, their use is more restricted and subject to stringent safety regulations.
Additionally, engineers have developed other specialized types of slip rings for wind turbines, such as those made with advanced materials for improved performance in extreme conditions or configurations designed to handle particularly high power loads or signal complexities. Each type of slip ring brings its own set of benefits and considerations, underscoring the importance of matching the slip ring to the specific requirements of the wind turbine application. This tailored approach ensures that the windmill operates proficiently, contributing to the overall efficiency and sustainability of wind energy generation.
Windmill Slip Rings Specifications
Windmill slip rings are essential components used in wind turbines to transmit power and data from the rotating blades to the stationary part of the turbine. These slip rings are designed to handle the specific demands of wind energy applications, ensuring efficient and reliable operation. Below is a detailed description of the specifications typically associated with windmill slip rings:
Electrical Specifications
- Rated Voltage: Windmill slip rings are usually designed to operate at a voltage range of 400V to 690V AC, depending on the turbine’s design.
- Current Rating: These slip rings can handle currents ranging from 10A to 500A per circuit, depending on the power requirements of the turbine.
- Number of Circuits: Typically, windmill slip rings feature multiple circuits, ranging from 6 to 36 circuits, to accommodate various power and signal transmission needs.
- Insulation Resistance: The insulation resistance is generally higher than 1000MΩ at 500V DC to ensure safety and prevent leakage currents.
Mechanical Specifications:
- Rotational Speed: Windmill slip rings are designed to operate at rotational speeds ranging from 0 to 300 RPM, which matches the slow rotation of wind turbine blades.
- Contact Material: The contact materials are usually made of precious metals like gold or silver alloy to ensure low friction, high conductivity, and long life.
- Housing Material: The housing is often made from corrosion-resistant materials like stainless steel or aluminum alloy, with additional protection coatings to withstand harsh environmental conditions.
- Mounting Configuration: They can be designed for either shaft mounting or flange mounting, depending on the specific wind turbine design.
- Service Life: The expected service life of windmill slip rings can range from 10 to 20 years, with minimal maintenance requirements.
Environmental Specifications:
- Operating Temperature: Windmill slip rings are designed to operate in a wide temperature range, typically from -40°C to +80°C, to accommodate various climatic conditions.
- Protection Class: These slip rings are usually rated with a high IP (Ingress Protection) Rating, such as IP65 or IP67, to protect against dust, moisture, and other environmental factors.
- Vibration and Shock Resistance: They are built to withstand significant vibration and shock, complying with IEC standards to ensure reliability in wind turbine applications.
- Humidity Resistance: Windmill slip rings are often equipped to handle high humidity levels, up to 95% non-condensing, to prevent corrosion and electrical failures.
Signal Transmission Specifications:
- Data Transmission: Windmill slip rings often include circuits dedicated to data transmission, capable of supporting Ethernet, fiber optics, or other communication protocols, ensuring real-time monitoring and control of the wind turbine.
- Noise and Signal Integrity: They are designed to minimize electrical noise and ensure high signal integrity, critical for the accurate transmission of sensor data and control signals.
- Bandwidth: High-bandwidth data transmission capabilities are often integrated to accommodate the increasing complexity of modern wind turbine monitoring systems.
Customization Options:
- Custom Circuits: Depending on the specific requirements, manufacturers offer customized circuits for power, data, and hybrid slip rings.
- Connector Types: Various connector types can be used based on the installation requirements, including plug-and-play connectors for easy maintenance.
- Modular Design: Some windmill slip rings are designed with a modular approach, allowing for easy upgrades or replacements of individual components without the need to replace the entire unit.
Certification and Compliance:
- Standards Compliance: Windmill slip rings often comply with international standards such as IEC, CE, UL, and RoHS, ensuring they meet safety, environmental, and performance requirements.
- Testing: Extensive testing, including high-voltage, insulation, and thermal tests, is typically performed to ensure the slip rings can withstand the rigors of wind turbine operation.
In summary, windmill slip rings are critical components in wind turbines, designed with specific electrical, mechanical, and environmental specifications to ensure long-lasting, reliable performance under challenging conditions. Customization options allow these slip rings to be tailored to the specific needs of different wind turbine designs, ensuring optimal efficiency and durability.
Windmill Slip Ring Key Components
Windmill slip rings are complex devices composed of several key components, each designed to ensure the efficient and reliable transmission of electrical power and signals from the rotating parts of the wind turbine to the stationary parts. Below are the key components of a windmill slip ring:
1. Rotor Assembly:
- Rotating Contacts: These are typically metal rings (made of materials such as copper, silver, or gold alloys) attached to the rotating shaft of the wind turbine. They are the primary contact points that transmit electrical current as the rotor spins.
- Shaft: The rotor assembly is mounted on the shaft, which rotates along with the wind turbine’s blades. The slip ring must accommodate the slow rotation of the shaft while maintaining reliable contact.
- Bearing System: Precision bearings are used to support the rotor assembly and ensure smooth rotation with minimal friction. The bearings must be robust enough to handle the turbine’s rotational forces over extended periods.
2. Stator Assembly:
- Brushes: Brushes are stationary contacts that press against the rotating rings. They are usually made of graphite, carbon, or a combination of carbon and metal. The brushes conduct electricity from the rotating rings to the external circuits.
- Brush Holders: These components hold the brushes in place and apply a consistent pressure to ensure continuous contact with the rotating rings. The holders are designed to accommodate wear over time and can often be adjusted or replaced.
- Insulation System: The stator assembly includes insulation materials that separate the different electrical circuits and prevent short-circuits. High-quality insulation is critical to prevent electrical leakage and ensure safety.
3. Housing:
- Enclosure: The slip ring’s housing protects the internal components from environmental factors such as dust, moisture, and extreme temperatures. The enclosure is often made from durable, corrosion-resistant materials like stainless steel or aluminum, with an IP rating to indicate its protection level (e.g., IP65 or IP67).
- Seals: Seals are used to prevent the ingress of contaminants like dust, water, and grease, ensuring the internal components remain clean and functional. These seals are crucial for maintaining the longevity of the slip ring.
4. Terminal Blocks:
- Power Terminals: Terminal blocks provide secure and accessible connection points for power and signal wires. These terminals are typically made from high-conductivity metals to minimize resistance and ensure efficient current flow.
- Data Terminals: For wind turbines that require data transmission, the slip ring will include terminals for Ethernet, fiber optics, or other communication lines, allowing for real-time data transfer from sensors and control systems.
5. Contact Materials:
- Metal Rings: The metal rings are crucial for the transfer of electrical current from the rotor to the brushes. These rings are often plated with gold or silver to reduce wear and provide a reliable conductive surface.
- Brush Materials: The brush material is selected for its conductive properties and wear resistance. Common materials include graphite, silver-graphite, or precious metal alloys, depending on the specific application requirements.
6. Cable Management System:
- Cable Bundles: Cables are used to carry the electrical power and signals from the slip ring to the turbine’s control systems. The cables must be durable and flexible to withstand the constant movement and vibration of the wind turbine.
- Cable Glands: These are used to secure the cables at the point where they enter or exit the slip ring housing, providing strain relief and sealing against environmental contaminants.
7. Cooling System (Optional):
- Heat Sinks: Some windmill slip rings include heat sinks to dissipate heat generated by electrical resistance and friction. This cooling system helps prevent overheating and extends the life of the slip ring.
- Forced Air or Liquid Cooling: In more demanding applications, active cooling systems such as forced air or liquid cooling may be incorporated to maintain optimal operating temperatures.
8. Mounting Hardware:
- Flanges: Flanges are used to mount the slip ring to the wind turbine structure. The mounting must be secure and precise to ensure alignment between the rotating and stationary components.
- Bolts and Fasteners: High-strength bolts and fasteners are used to secure the slip ring assembly in place, ensuring it remains stable even under the stresses of turbine operation.
9. Monitoring and Diagnostics Components (Optional):
- Sensors: Some advanced slip rings are equipped with sensors to monitor temperature, vibration, and wear. These sensors provide real-time data that can be used to predict maintenance needs and prevent failures.
- Diagnostic Ports: Diagnostic ports allow for easy access to the slip ring’s internal data, facilitating maintenance and troubleshooting.
These components work together to ensure that windmill slip rings provide a reliable connection between the rotating blades and the stationary part of the wind turbine, enabling efficient power generation and data transmission even in harsh environmental conditions.
Windmill Slip Rings: Design Considerations
Designing slip rings for wind turbines is a complex endeavor that requires a deep understanding of both the operational conditions and the turbine’s specific requirements. These components must not only ensure the efficient transfer of energy and data but also withstand the rigors of the turbine’s environment. Here, we explore the key specifications and design considerations divided into electrical properties, mechanical factors, and environmental considerations.
Electrical Properties: Current, Voltage, and Signal Requirements
The primary purpose of a slip ring is to facilitate electrical continuity. To achieve this, it must be tailored to match the turbine’s current and voltage requirements precisely. This involves not just the power to drive the motor but also the ability to handle the nuanced signals for control systems and data communication. For instance, the slip ring’s design must account for the peak current and voltage levels without degradation over time, ensuring a minimal drop that could affect performance. Signal integrity is another critical consideration, especially with the increase in sophisticated sensor data being transmitted for real-time monitoring and control. Engineers must carefully design the slip ring to prevent crosstalk and signal noise, ensuring clear communication between the turbine’s control systems and its various operational components.
Mechanical Factors: Size, Durability, and Rotation Speed Compatibility
On the mechanical front, the design of a windmill slip ring must consider the physical space within the nacelle, necessitating a compact solution that does not compromise performance. Durability is another cornerstone, as the slip ring must endure the mechanical stresses of constant rotation, often at high speeds. This wear-and-tear aspect necessitates materials and designs that minimize friction and wear, extending the service life of the slip ring. Compatibility with the turbine’s rotation speed is also a crucial design parameter. The slip ring must maintain consistent performance across the turbine’s entire operational range, from the slow rotations of gentle breezes to the rapid spinning driven by powerful gusts.
Environmental Considerations: Resistance to Extreme Weather Conditions, Corrosion, and Other Site-Specific Factors
Wind turbines are deployed in a diverse array of environments, from the freezing vistas of the Arctic to sun-scorched desert landscapes. This geographic diversity subjects slip rings to a wide range of environmental stresses. Therefore, resistance to extreme weather conditions—be it temperature extremes, humidity, or salt-laden air in coastal areas—is a critical design consideration. Materials and coatings that resist corrosion and other forms of environmental degradation are essential to ensure the slip ring’s longevity. Furthermore, considering site-specific factors such as the risk of lightning in storm-prone areas or the presence of abrasive particulates in desert settings can influence design choices to enhance protection and durability.
In summary, the design and selection of windmill slip rings are governed by a confluence of electrical, mechanical, and environmental considerations. Balancing these factors to meet the specific needs of each wind turbine installation ensures reliable, efficient operation and contributes to the overall success of wind energy projects.
Types of Windmill Slip Ring
Windmill slip rings are designed to meet the specific requirements of wind turbines, and they come in various types depending on the application, operational needs, and design of the wind turbine. Here are the common types of windmill slip rings:
1. Power Slip Rings:
- Purpose: Power slip rings are designed specifically for the transmission of electrical power from the rotating hub of the wind turbine to its stationary parts. They handle high currents and voltages.
- Applications: Used in wind turbines to transmit electrical power generated by the turbine’s blades to the grid or energy storage systems.
- Key Features: These slip rings are typically robust, capable of handling high power loads, and are often equipped with durable contacts and insulation to manage the electrical load efficiently.
2. Data Slip Rings:
- Purpose: Data slip rings are used to transmit data signals between the rotating and stationary parts of the wind turbine. They are essential for communication systems, sensor data transmission, and control signals.
- Applications: Employed in wind turbines to send real-time data from various sensors located on the rotating parts to the control systems.
- Key Features: These slip rings are designed to minimize electrical noise and signal loss, supporting various communication protocols such as Ethernet, fiber optics, and other low-current data signals.
3. Hybrid Slip Rings:
- Purpose: Hybrid slip rings combine both power and data transmission capabilities in a single unit, making them versatile and space-saving.
- Applications: Used in wind turbines where both power and data need to be transmitted simultaneously between rotating and stationary components.
- Key Features: These slip rings feature separate circuits for power and data, ensuring that the high currents do not interfere with signal integrity. They are compact and optimized for multi-functional use.
4. Fiber Optic Slip Rings:
- Purpose: Fiber optic slip rings are designed to transmit data using optical fibers, offering high-speed and high-bandwidth communication.
- Applications: Employed in wind turbines that require fast and reliable data transmission with minimal signal degradation, especially in systems that rely on large amounts of data transfer.
- Key Features: These slip rings use optical fibers instead of traditional metal contacts, providing immunity to electromagnetic interference and ensuring high signal quality.
5. Capsule Slip Rings:
- Purpose: Capsule slip rings are compact units that encapsulate the entire slip ring assembly in a small, sealed housing.
- Applications: Used in smaller wind turbines or in situations where space is a constraint and a compact design is required.
- Key Features: They are small, lightweight, and typically used for low-current applications. The sealed design protects the internal components from environmental factors.
6. Separate Slip Rings:
- Purpose: These slip rings are designed with the electrical power and data circuits housed in separate units.
- Applications: Used in wind turbines where power and data transmission need to be isolated to prevent interference or when the design requires separate handling of these circuits.
- Key Features: They provide greater flexibility in design, allowing for specific customization based on the turbine’s requirements. The separation of power and data circuits can enhance the overall reliability and performance of the system.
7. Through Bore Slip Rings:
- Purpose: Through bore slip rings feature a hollow center, allowing them to be mounted around a shaft or other mechanical components.
- Applications: Commonly used in wind turbines where the slip ring needs to be mounted around a rotating shaft or where the design requires a pass-through for cables or other mechanical parts.
- Key Features: The through bore design is versatile and can accommodate large shafts or complex mechanical assemblies, providing both power and data transmission while allowing other components to pass through the center.
8. Modular Slip Rings:
- Purpose: Modular slip rings are designed with a modular architecture, allowing individual components or modules to be replaced or upgraded without replacing the entire slip ring assembly.
- Applications: Used in wind turbines that require easy maintenance, upgrades, or customization over time.
- Key Features: These slip rings offer flexibility and scalability, making them ideal for applications where future-proofing and adaptability are important. They can be tailored to specific power and data transmission needs by adding or removing modules.
9. High-Voltage Slip Rings:
- Purpose: High-voltage slip rings are specifically designed to handle high voltage levels, often required in large wind turbines.
- Applications: Used in large-scale wind turbines where the electrical power generated is at high voltages.
- Key Features: These slip rings are built with enhanced insulation and durable materials to safely manage high voltages without degradation or risk of arcing.
10. Low-Friction Slip Rings:
- Purpose: Low-friction slip rings are designed to minimize mechanical wear and tear, reducing maintenance needs and extending the service life.
- Applications: Ideal for wind turbines that operate continuously and require minimal maintenance.
- Key Features: They use advanced materials and lubrication systems to reduce friction between the rotating and stationary components, ensuring smooth operation over time.
Each type of windmill slip ring is engineered to meet specific operational requirements, ensuring optimal performance, reliability, and longevity in wind turbine applications. The choice of slip ring type depends on factors such as the turbine size, power generation capacity, data transmission needs, and environmental conditions.
Applications of Windmill Slip Ring
Windmill slip rings are critical components in wind turbines, enabling the transfer of electrical power and data between the rotating and stationary parts of the turbine. Their applications are essential for the efficient and reliable operation of wind energy systems. Below are the key applications of windmill slip rings:
1. Power Transmission:
- Application: Windmill slip rings are primarily used to transmit electrical power generated by the wind turbine’s rotating blades to the stationary part of the turbine, where it can be directed to the grid or stored in batteries.
- Importance: This application ensures the continuous flow of electricity from the turbine, regardless of the rotation, allowing for efficient power generation and distribution.
2. Data Transmission and Communication:
- Application: Slip rings are used to transmit data between the rotating nacelle and the stationary base of the wind turbine. This includes data from sensors monitoring the turbine’s performance, such as wind speed, blade angle, temperature, and vibration.
- Importance: Reliable data transmission is crucial for real-time monitoring and control of the wind turbine, ensuring optimal performance, predictive maintenance, and safe operation.
3. Pitch Control Systems:
- Application: Slip rings play a vital role in pitch control systems, which adjust the angle of the wind turbine blades to optimize their interaction with the wind. This adjustment maximizes energy capture and reduces stress on the blades during high winds.
- Importance: By facilitating the transfer of control signals and power to the pitch control actuators, slip rings help maintain the efficiency and longevity of the wind turbine.
4. Yaw Control Systems:
- Application: In wind turbines, the yaw control system rotates the nacelle to face the wind direction. Slip rings are used to transmit power and control signals to the yaw motors and sensors.
- Importance: This application ensures that the turbine always faces the wind, maximizing energy capture and improving overall efficiency.
5. Lightning Protection Systems:
- Application: Windmill slip rings are often integrated with lightning protection systems that prevent damage to the turbine from lightning strikes. They provide a path for electrical discharge from the rotating blades to the ground.
- Importance: Lightning protection is crucial for the safety and durability of wind turbines, particularly in areas prone to storms.
6. Condition Monitoring Systems:
- Application: Slip rings enable the transfer of data from condition monitoring systems installed in the rotor hub and blades. These systems monitor the health of critical components, detecting issues like bearing wear, vibration anomalies, and temperature fluctuations.
- Importance: Early detection of potential problems through condition monitoring helps prevent costly failures and downtime, ensuring continuous operation of the wind turbine.
7. Anemometer and Wind Vane Systems:
- Application: Slip rings are used to transmit power and data from anemometers and wind vanes mounted on the turbine’s rotating nacelle. These devices measure wind speed and direction, providing essential data for turbine operation.
- Importance: Accurate wind measurements are necessary for adjusting turbine operations to optimize power generation and for ensuring the safety of the turbine in extreme weather conditions.
8. De-Icing and Heating Systems:
- Application: In cold climates, slip rings are used to transmit power to de-icing or heating systems installed on the turbine blades. These systems prevent ice build-up, which can cause imbalances and reduce efficiency.
- Importance: De-icing systems are critical for maintaining turbine performance and safety in cold environments, preventing damage to the blades and other components.
9. Hybrid Power and Data Systems:
- Application: Some wind turbines utilize hybrid slip rings that combine power and data transmission in a single unit. These are used in advanced turbines that require integrated systems for both functions.
- Importance: Hybrid systems are space-saving and reduce the complexity of installation and maintenance, making them ideal for modern wind turbines with extensive monitoring and control systems.
10. Vibration Damping and Noise Reduction:
- Application: Certain slip rings are designed to transmit signals to systems that actively manage vibration damping and noise reduction in wind turbines, enhancing operational efficiency and reducing wear on mechanical components.
- Importance: By managing vibrations and noise, these systems contribute to the longevity of the turbine and improve the overall quality of energy production.
11. Emergency Power Supply Systems:
- Application: In some wind turbines, slip rings are used to connect emergency power supply systems that provide backup power for essential operations during grid outages or maintenance.
- Importance: Ensuring a continuous power supply for critical functions like pitch and yaw control during emergencies helps protect the turbine from damage and ensures a quick return to operation.
12. Energy Storage Integration:
- Application: Windmill slip rings can also be used in systems where the energy generated by the turbine is stored in batteries or other storage devices. They facilitate the transfer of power from the rotating parts of the turbine to the stationary energy storage systems.
- Importance: Integrating energy storage systems helps stabilize the grid by managing fluctuations in wind energy production, providing a more reliable power supply.
In summary, windmill slip rings are essential in various applications within wind turbines, playing a crucial role in power transmission, data communication, control systems, and safety measures. Their reliability and efficiency are vital for the optimal operation and longevity of wind energy systems.
Windmill Slip Rings: Technological Advancements and Innovations
Keeping pace with the ever-evolving field of renewable energy, wind turbine technology has seen substantial advancements in recent years. Below, we take a closer look at how these improvements extend to the crucial components known as windmill slip rings, where technology has driven notable enhancements in materials, surface engineering, contact material advancements, and even the emergence of wireless technologies.
Recent Improvements in Materials and Design for Enhanced Performance
Modern wind turbines are growing in capacity and size, elevating the demands placed upon slip rings. To meet these evolving needs, recent improvements in materials and computational design tools are leading to slip rings that can transmit greater current loads, handle higher speeds, and operate more reliably. Advances in materials science have introduced conductive alloys and composites that offer superior electrical conduction and enhanced durability. Similarly, modern computational modeling and simulation tools allow engineers to optimize slip ring designs for factors like mechanical stress and thermal management even before physical prototypes are developed, saving development time and cost.
The Impact of Surface Engineering and Contact Material Advancements
Surface engineering and the development of new contact materials have revolutionized the performance and longevity of windmill slip rings. Innovations in tribology—the study of friction, wear, and lubrication—have revealed how the surface characteristics of a slip ring and its brushes dramatically influence their performance and lifespan. Engineers have brought materials like gold alloys, composite metals, and advanced polymer compounds to the forefront, focusing on optimizing their properties for specific applications. By selectively engineering the surface and contact materials, scientists have been able to enhance the electrical efficiency of slip rings, reduce friction-induced wear, and extend the overall lifetime of the components significantly.
The Emergence of Wireless Technology in Wind Turbine Slip Ring Applications
One of the most exciting innovations in the world of windmill slip rings is the emergence of wireless technologies. Though still in its relative infancy, this technology offers a solution to the difficulties of traditional physical slip rings by providing contact-free data and power transmission. Wireless slip rings, or “rotary transformers,” remove the need for physical contact, which eliminates wear and tear, reduces the need for maintenance, and can offer efficiency improvements through an increased transmission range—not to mention eliminating the failures due to physical contact altogether. Although the current technology primarily handles lower power loads and data transfer, ongoing research and development promise future advancements that could push wireless technology further into the mainstream.
Together, these advancements reflect the dynamic and innovative nature of the renewable energy industry. As technology strides forward to provide solutions that improve the reliability, efficiency, and longevity of wind turbines, we can expect to see increased use and development of these critical components, further propelling wind energy as a viable and sustainable alternative to fossil fuels.
Windmill Slip Rings: Installation and Maintenance
Installing and maintaining windmill slip rings are critical procedures that ensure the optimal functioning and longevity of wind turbines. With the right approach, these processes can significantly enhance the efficiency and reliability of wind energy production. Below, we delve into the step-by-step installation of windmill slip rings, and routine maintenance practices, and tackle common maintenance challenges and their solutions.
Step-by-Step Guide to Installing Windmill Slip Rings
Installation of windmill slip rings is a nuanced process that requires precision and compliance with specific procedures to guarantee smooth operation. The general steps include:
- Preparation: Begin with a thorough review of the turbine manufacturer’s installation manual. Gather all necessary tools and the slip ring unit. Ensure the installation area within the nacelle is clean and ready.
- Mounting: Securely mount the slip ring unit to the designated area inside the turbine’s nacelle. This step typically involves bolting the slip ring’s base to a pre-defined spot ensuring it is perfectly aligned with the rotational axis.
- Electrical Connections: Carefully connect the electrical cables from both the turbine’s rotating and stationary components to the corresponding terminals on the slip ring, adhering strictly to the wiring diagram provided by the manufacturer.
- Testing: Once installed, perform a comprehensive test to ensure electrical continuity and the integrity of data signals. This may involve manual rotation of the slip ring and monitoring the electrical output.
- Final Checks: Conduct a final inspection to ensure all components are correctly installed, and there are no loose connections. Double-check the slip ring’s alignment and secure all fasteners.
Routine Maintenance Practices to Ensure Longevity and Efficient Performance
Regular and systematic maintenance is key to extending the life span of slip rings and maintaining the efficiency of wind turbines. Essential maintenance practices include:
- Inspection: Routinely inspect the slip ring for signs of wear, corrosion, or damage. This includes checking the condition of the brushes and the contact surface.
- Cleaning: Keep the slip ring and its components clean from debris and contaminants, which can cause electrical interference or accelerate wear. Use approved cleaning agents and methods as recommended by the manufacturer.
- Lubrication: Some slip ring designs may require lubrication to minimize friction and wear between contact points. If applicable, apply lubrication sparingly and according to the manufacturer’s specifications.
- Testing: Regularly test the electrical continuity and resistance levels to detect emerging issues before they lead to failure. This helps ensure reliable operation and identifies when parts need replacement.
Common Challenges in Maintenance and How to Address Them
Despite the best preventive measures, maintenance challenges can arise. Here’s how to address some common issues:
- Excessive Wear: If slip rings or brushes show signs of premature wear, investigate alignment issues, improper installation, or the use of incorrect materials and take corrective actions.
- Electrical Noise: Interference or signal corruption can often be traced back to dirty or worn-out contacts. Regular cleaning and replacing worn components can mitigate this problem.
- Corrosion: Exposure to harsh environments can lead to corrosion. Combat this by ensuring adequate sealing and protection against moisture. In severe cases, switch to corrosion-resistant materials.
Addressing these challenges promptly and adhering to a routine maintenance schedule are key components in the successful long-term operation of wind turbines. By following comprehensive installation procedures and routine maintenance practices, one can ensure the prolonged efficiency and reliability of windmill slip rings, contributing significantly to the sustainable production of wind energy.
Selection Criteria for Windmill Slip Rings
Selecting the correct slip ring for a wind turbine is a critical decision that impacts not only the efficiency and reliability of the system but also its overall longevity. This process involves understanding the unique needs of your operation, considering customization for specific applications, and carefully balancing cost with quality. Let’s delve into how one can navigate these considerations to make an informed selection.
How to Choose the Right Slip Ring for Your Wind Turbine
The selection of a suitable slip ring begins with a thorough assessment of the turbine’s operational requirements. Key factors include:
- Electrical Specifications: Evaluate the current and voltage requirements of the turbine, along with signal types that the slip ring needs to accommodate (e.g., data, sensor signals, power).
- Mechanical Requirements: Consider the size constraints within the turbine nacelle and the expected rotational speeds. It’s crucial to ensure the slip ring can withstand the physical demands of its operating environment.
- Environmental Conditions: Identify the environmental conditions (e.g., temperature, humidity, exposure to corrosive agents) in which the turbine will operate, as these significantly affect the durability and performance of the slip ring.
- Longevity and Maintenance Needs: Assess how the choice of slip ring impacts maintenance schedules and overall turbine uptime. A slip ring requiring less frequent maintenance can contribute to higher efficiency and lower operational costs.
By thoroughly mapping out these considerations, one can narrow down the selection to slip rings that meet the specific needs of their wind turbine operation.
Customization Options: When Standard Models Don’t Fit the Bill
In many cases, off-the-shelf slip rings may not meet the unique requirements of specialized wind turbine systems. That’s where customization comes into play, offering solutions tailored to specific operational needs. Customization can address unique electrical specifications, incorporate specific materials for enhanced durability, or adapt to physical size requirements and mounting options. Engaging with manufacturers who can understand and adapt to these needs is crucial. Custom-designed slip rings ensure the best fit for the application, potentially leading to better performance and lower lifetime costs.
The Balance Between Cost and Quality Considerations
Navigating the cost-quality balance is often one of the most challenging aspects of selecting a slip ring. While it may be tempting to opt for lower-cost options to minimize upfront expenditures, this strategy can lead to increased maintenance costs, more frequent replacements, and potential turbine downtime in the long run. On the other hand, higher-quality slip rings may present a higher initial investment but offer greater reliability, reduced maintenance needs, and longer service life, ultimately delivering better value over time.
Choosing the right slip ring involves evaluating not just the purchase price but the total cost of ownership, which includes maintenance costs, potential downtime, and the lifespan of the slip ring. Engaging with reputable manufacturers known for quality and reliability, and considering the warranty and support services provided, can help in making a decision that balances both cost and quality effectively.
In conclusion, selecting the right slip ring for a wind turbine is a multifaceted process that requires careful consideration of the system’s electrical, mechanical, and environmental requirements, the potential need for customization to meet specific operational goals, and a thoughtful approach to balancing upfront costs against long-term value and reliability. By thoroughly evaluating these factors, operators can ensure they choose slip rings that contribute to the efficient, reliable, and sustainable operation of their wind turbines.
Windmill Slip Ring Custom Solutions
Custom solutions for windmill slip rings are tailored to meet the specific requirements and challenges of different wind turbine designs and operational environments. These customizations ensure optimal performance, reliability, and longevity of the slip rings in diverse and demanding conditions. Below are some of the key aspects of windmill slip ring custom solutions:
1. Tailored Circuit Design:
- Custom Power Circuits: Power circuits can be designed to handle specific voltage and current requirements, ensuring that the slip ring can efficiently transmit the necessary power without overheating or excessive wear.
- Custom Data Circuits: The number and type of data circuits can be customized to support various communication protocols, such as Ethernet, fiber optics, CAN bus, or proprietary systems, depending on the turbine’s control and monitoring needs.
- Hybrid Circuits: Hybrid designs that combine power and data transmission circuits in a single slip ring can be customized to optimize space and reduce the complexity of the turbine’s internal wiring.
2. Specialized Contact Materials:
- Material Selection: Depending on the environmental conditions and operational demands, custom slip rings can be made with different contact materials, such as silver-graphite, gold, or silver alloys, to ensure low friction, high conductivity, and minimal wear.
- Enhanced Durability: For turbines operating in harsh environments, contact materials can be selected for increased resistance to corrosion, oxidation, and abrasion, extending the service life of the slip ring.
3. Customized Housing and Protection:
- Environmental Protection: Slip rings can be custom-designed with housing that meets specific Ingress Protection (IP) ratings, such as IP65, IP67, or higher, to protect against dust, water, and other environmental factors. This is particularly important for offshore wind turbines or turbines in extreme climates.
- Corrosion Resistance: Custom coatings and materials, such as marine-grade stainless steel or specialized polymers, can be used to protect the slip ring housing from saltwater corrosion, UV exposure, and chemical degradation.
4. Modular and Scalable Designs:
- Modular Slip Rings: For ease of maintenance and upgrades, slip rings can be designed with a modular architecture, allowing individual components or circuits to be easily replaced or upgraded without the need to replace the entire assembly.
- Scalability: Custom slip rings can be designed to be scalable, allowing for the addition of more circuits or the upgrading of existing ones as the turbine’s power generation capacity or data transmission needs increase.
5. Advanced Data Transmission Capabilities:
- High-Speed Data Transmission: For turbines requiring high-bandwidth data communication, custom slip rings can be designed with advanced data transmission capabilities, including support for high-speed Ethernet, fiber optics, and wireless data transmission technologies.
- Noise Reduction: Custom solutions can include features like shielding or filtering to reduce electrical noise and ensure the integrity of data signals, which is critical for accurate monitoring and control.
6. Enhanced Maintenance Features:
- Wear Monitoring Systems: Custom slip rings can be equipped with integrated sensors to monitor wear on the contacts and brushes, providing real-time data on their condition and predicting maintenance needs before failures occur.
- Self-Lubricating Systems: For slip rings in hard-to-reach locations, custom self-lubricating systems can be designed to reduce the need for regular maintenance and extend the service life of the contacts.
7. Temperature and Humidity Control:
- Temperature Management: For turbines operating in extreme temperatures, custom slip rings can include integrated heating or cooling systems to maintain optimal operating temperatures and prevent thermal degradation of components.
- Humidity Control: Custom solutions may include humidity control features, such as desiccant packs or sealed enclosures with moisture barriers, to prevent condensation and corrosion in high-humidity environments.
8. Vibration and Shock Resistance:
- Reinforced Design: In turbines subject to high levels of vibration or mechanical shock, custom slip rings can be designed with reinforced components, such as vibration-damping mounts or shock-resistant housings, to ensure reliable operation under dynamic conditions.
- Advanced Bearings: High-precision bearings with enhanced durability can be used to support the rotor assembly, reducing the impact of vibration and extending the life of the slip ring.
9. Custom Mounting Solutions:
- Mounting Adaptability: Custom slip rings can be designed to fit specific mounting configurations, whether it’s shaft mounting, flange mounting, or a custom bracket, ensuring a secure fit and proper alignment within the wind turbine.
- Compact Designs: For turbines with limited space, slip rings can be custom-engineered to have a more compact design, reducing their footprint while still meeting the necessary power and data transmission requirements.
10. Integration with Advanced Control Systems:
- Smart Slip Rings: Custom slip rings can be integrated with advanced control systems, featuring embedded microcontrollers or communication interfaces for real-time monitoring, diagnostics, and remote control.
- IoT Integration: For modern wind turbines, slip rings can be designed to integrate with Internet of Things (IoT) platforms, enabling cloud-based monitoring and predictive maintenance analytics.
11. Specialized Applications:
- Offshore Wind Turbines: Custom slip rings for offshore applications can be designed with enhanced corrosion resistance, higher IP ratings, and more robust mechanical structures to withstand the challenging marine environment.
- Cold Climate Turbines: For wind turbines operating in cold climates, slip rings can be customized with heating elements or materials that perform well in sub-zero temperatures, preventing issues such as freezing or brittleness.
12. Compliance with Industry Standards:
- Certification and Testing: Custom slip rings can be designed to meet specific industry standards and certifications, such as IEC, CE, UL, and RoHS, ensuring compliance with regulatory requirements and guaranteeing safety and performance.
Custom windmill slip ring solutions are essential for addressing the unique challenges of different wind turbine installations, whether onshore or offshore, in varying climates, or under specific operational demands. By tailoring the design and features to the specific needs of a wind turbine, custom slip rings enhance reliability, efficiency, and lifespan, ultimately contributing to the overall success and sustainability of wind energy projects.
Windmill Slip Rings: User Concerns and Common Questions
Windmill slip rings play a critical role in enabling the production of wind energy, a key component of the global renewable energy mix. As operators and engineers work with these integral components, various concerns and questions may arise—from reliability to service life and maintenance costs. In this section, common worries are addressed, typical questions are clarified, and tips from industry experts on optimizing slip ring performance are shared.
Addressing User Concerns about Windmill Slip Rings
Users commonly express concerns related to the following:
- Reliability: Slip ring failure can lead to significant turbine downtime. To ensure reliability, users should choose slip rings from trusted manufacturers that meet the specific needs of their turbine, including electrical capacity, environmental tolerance, and rotational speed requirements.
- Service Life: Slip rings should ideally last as long as the wind turbine itself. This can be achieved by selecting slip rings characterized by high-quality materials and design, and observing regular maintenance practices.
- Maintenance Costs: Minimizing maintenance costs is a key concern for many operators, achieved by choosing a slip ring designed for easy maintenance and long life. Moreover, preventive maintenance can help detect and address issues before they lead to failure, thereby reducing cost implications over time.
FAQ Segment: Debunking Myths and Clarifying Uncertainties
Let’s address some common questions:
- Can slip rings handle both power and data transmission? Yes, modern slip rings can simultaneously transmit electrical power and multiple forms of data, such as ethernet or fiber optic signals.
- Do slip rings need regular replacement? No, if well-maintained and operated within design conditions, slip rings should not require regular replacement. They should typically last for several years—a lifetime almost as long as the wind turbine.
- Can I use any slip ring in a wind turbine? No, slip rings used in wind turbines need to meet specific electrical and mechanical demands of the application. Furthermore, they need to withstand the unique environmental conditions inside the turbine’s nacelle.
Tips from Industry Experts on Optimizing Slip Ring Performance
Experts in the field often offer these tips to enhance the performance of slip rings:
- Right Selection: Choose a slip ring that matches the turbine’s specifications—a careful selection process can significantly impact system efficiency and longevity.
- Regular Maintenance: Follow a regular maintenance schedule to ensure the slip ring and its components stay clean and functional. Regular inspections can help detect potential issues before they lead to catastrophic failure.
- Optimized Cooling: If the slip ring is expected to transfer high currents, it may generate significant heat that needs to be dissipated. Thus, ensuring adequate cooling provisions can enhance the overall performance and extend the ring’s life span.
Navigating windmill slip ring concerns, queries, and performance optimization strategies ultimately contributes to more efficient, trustworthy, and cost-effective renewable energy production. A thorough understanding of these aspects can ensure users are well-equipped to make informed decisions and proficiently manage their wind turbine operations.
Windmill Slip Rings: Case Studies and Real-World Applications
The dynamism of wind energy technology presents continuous learning opportunities and showcases the critical role of components like windmill slip rings in the broader context of renewable energy systems. Through examining successful implementations and reflecting on the challenges navigated along the way, much can be learned about efficiency, reliability, and technological advancements in this space. This segment explores real-world applications and distilled lessons from various experiences across the globe.
Analysis of Successful Windmill Slip Ring Implementations
A notable example of successful slip ring implementation is seen in a large offshore wind farm project located in the North Sea. This project involved the use of high-capacity slip rings capable of handling immense electrical loads and transmitting data for real-time monitoring and control. The slip rings were custom-designed to withstand the harsh marine environment, featuring corrosion-resistant materials and waterproof sealing.
The results were compelling: enhanced turbine uptime, reduced maintenance due to the durability of the slip rings, and improved safety and reliability of power and data transmission. This case underscores the significance of customizing slip ring technology to meet the specific demands of the deployment environment, thereby achieving superior performance outcomes.
Lessons Learned from Real-World Challenges and Solutions
The evolution of windmill slip rings is marked by continuous improvement, driven by real-world challenges and the development of innovative solutions. A common challenge, particularly in older wind turbines, has been the wear and tear of slip ring brushes, leading to increased maintenance needs and operational downtime.
Through a series of field studies and engineering efforts, a solution was devised in the form of brushless slip ring technology. This advancement significantly cut down on maintenance frequency by eliminating the need for brush replacements, contributing to higher efficiency and lower long-term operational costs. This breakthrough highlighted the importance of ongoing research and development in overcoming operational challenges and improving the wind energy sector’s sustainability.
Another insightful case involved a wind farm experiencing intermittent data transmission issues, attributed to the inadequate performance of its existing slip rings under extreme weather conditions. After thorough analysis, it was found that upgrading to slip rings with better environmental sealing and higher quality material composition resolved the issue, enhancing the reliability of data communication between the turbine’s nacelle and base.
Fill out our inquiry form for expert Windmill Slip Ring advice and pricing.
This instance revealed the critical nature of selecting the right slip ring specifications for specific operational environments and the need for rigorous testing under anticipated conditions to prevent unforeseen failures.
Concluding Thoughts
The exploration of case studies and real-world applications of windmill slip rings illuminates the path of progress in the renewable energy sector. Success stories showcase the potential of technological innovation to push the boundaries of what’s possible, while challenges serve as stepping stones for future advancements. Together, they provide valuable insights into optimizing wind turbine performance, emphasizing the necessity for tailored solutions, rigorous testing, and an unwavering commitment to research and development. As wind energy continues to evolve, the lessons learned from these experiences will undoubtedly contribute to more resilient, efficient, and sustainable wind power systems globally.
Conclusion
The future of slip ring technology promises exciting prospects. Continuous innovation and best practices’ adoption are key to harnessing the full potential of these components, driving the wind energy sector towards a sustainable future.
FAQs about Windmill Slip Rings
Q: Do slip rings wear out quickly due to continuous rotation?
A: While it’s true that slip rings experience wear due to their rotational nature, advancements in materials and design have significantly extended their lifespan. Regular maintenance and choosing the right slip ring for your specific application can further mitigate wear and tear, ensuring long-term reliability.
Q: Can slip rings transfer data signals in addition to power?
A: Yes, modern slip rings are designed not only to transfer electrical power but also to handle various data signals, including Ethernet, control signals, and even fiber optics in some sophisticated models. This capability is crucial for the real-time monitoring and control of wind turbines.
Q: Are all slip rings the same? Can I use any slip ring for my wind turbine?
A: No, slip rings are not one-size-fits-all components. They are designed to meet specific requirements based on the turbine’s power output, environmental conditions, and operational needs. Using a slip ring that doesn’t match your turbine’s specifications can lead to inefficiencies and potential failures.
Q: What should I look for when selecting a slip ring for a wind turbine?
A: When selecting a slip ring, consider its electrical specifications (current and voltage ratings), data transmission capabilities, environmental resistance (e.g., to moisture, temperature extremes, and corrosion), and ease of maintenance. Consulting with slip ring manufacturers can provide insights into the best fit for your turbine’s requirements.
Q: How often do slip rings need maintenance, and what does it involve?
A: Maintenance frequency and requirements can vary based on the slip ring’s environment and duty cycle. Generally, an annual inspection is recommended, which involves cleaning, inspecting for wear and tear, and replacing brushes or other components as needed. Establishing a consistent maintenance schedule can prevent unexpected failures and extend the slip ring’s life.
Q: Can the performance of slip rings affect the overall efficiency of wind turbines?
A: Absolutely. Slip rings that are not operating efficiently can lead to power losses, unreliable data transmission, and even downtime for repairs. Ensuring your slip ring is properly selected, installed, and maintained is critical to maximizing the wind turbine’s operational efficiency and longevity.
